Enjoy an adapter which:

1. Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).

2. Clear trouble codes and turn off the MIL ("Check Engine" light)

3. Display current sensor data

4. Provides constant speed with MS-CAN / HS-CAN toggle switch

5. Allows access to all electronic control units: engine, gearbox, ABS, Airbag, climate control etc

6. Runs all service procedures: Service reset, DFP force regeneration, etc

7. component activation, ECU parameter modifications, etc

If you want to configure modules,many of the BT units will fail and refuse without OBD2 adapter to progarm them.

Top 4 Reason To Get ELM327

• Software Version: V1.5

• It supports all OBDII standard protocols

• User-friendly, and easy to learn

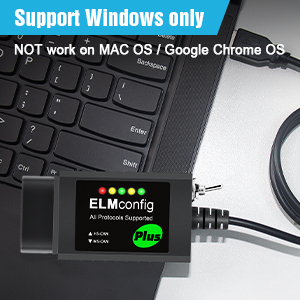

• Support operating systems-Windows.

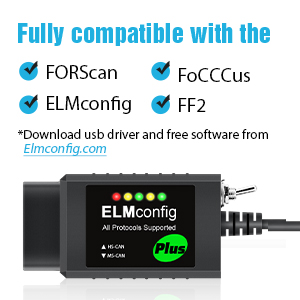

Download usb driver and free software from Elmconfig.com

How to use

1.download software needed and usb driver CH340 to Windows version laptop，install as administrator.

2.plug the device into your laptop USB port and switch the device to HS-CAN

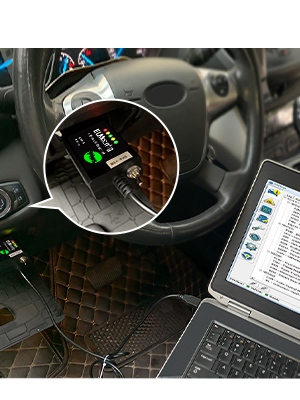

3.connect the device into your vehicles obd port and turn ignition on，start to diagnose&program.

Note: New 2019+ Mazda 3 and CX-30 are not supported yet.

Display current sensor data, including:

• Engine RPM

• Calculated Load Value

• Coolant Temperature

• Fuel System Status

• Vehicle Speed

• Short Term Fuel Trim

• Long Term Fuel Trim

• Intake Air Temperature

Tips

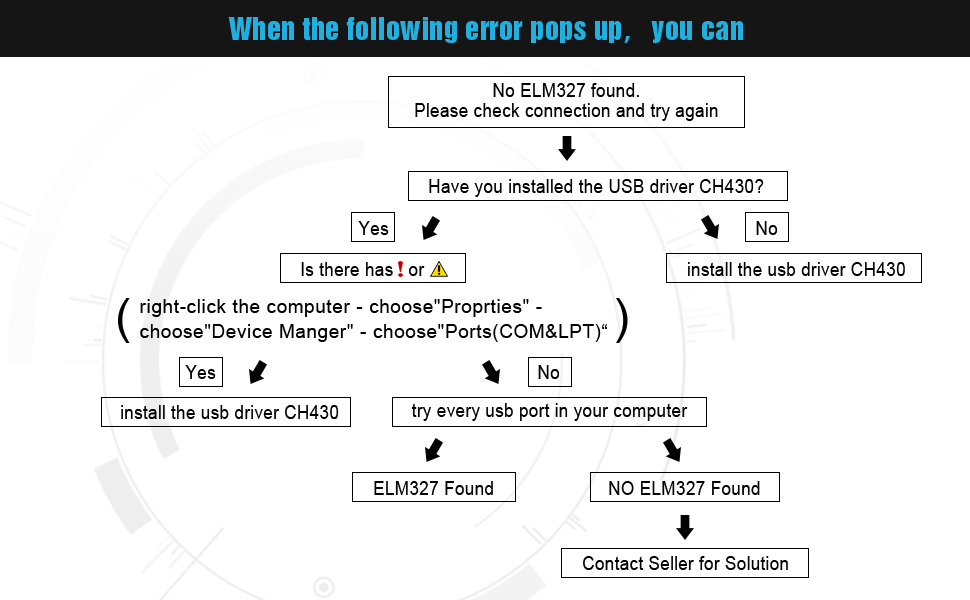

If you work on Windows 10 system and the adapter cannot work, please follow the steps below:

• Step 1: Right Click The FORScan Icon on Desktop——Choose “Properties”——Choose “Compatibility”——Select “Run this program in compatibility mode for”——Choose "Windows 7"——Select “Run this program as an administrator”——Choose “OK”

• Step 2: Connect this adapter to laptop and Car, then turn the ignition on

You will be asked to provide an extended license when access some modules.

• Get a 2-month free trial license from FORScan.org/forum/extlic.php.

• When registration,enter Your First and Last name,Contact phone,Hardware Id obtained in the item #1

• After registration,download license file, and import it into the setting in the FORScan software.

If there are any further questions, please email us.
